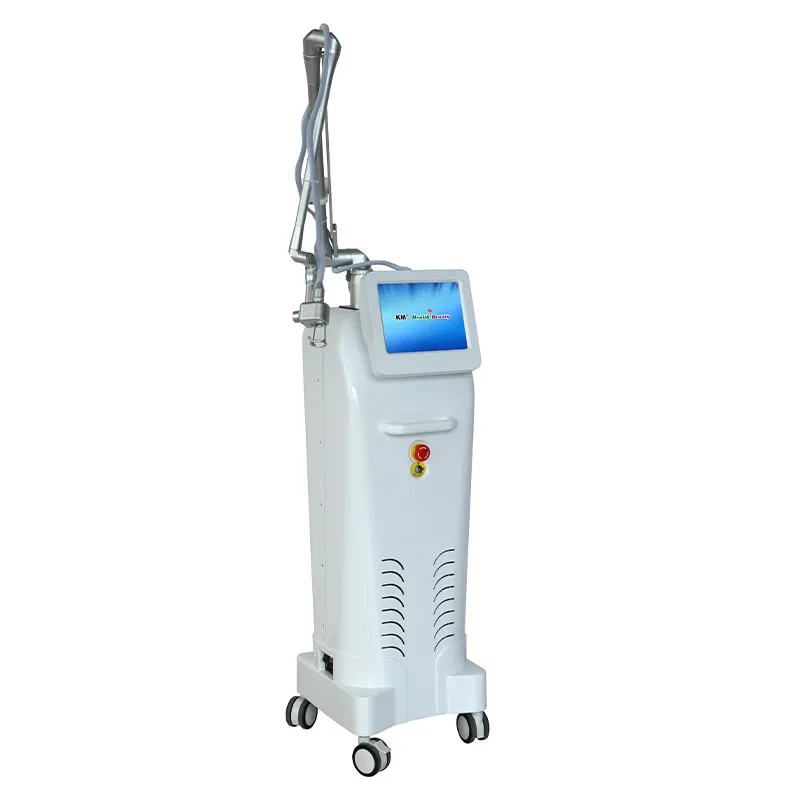

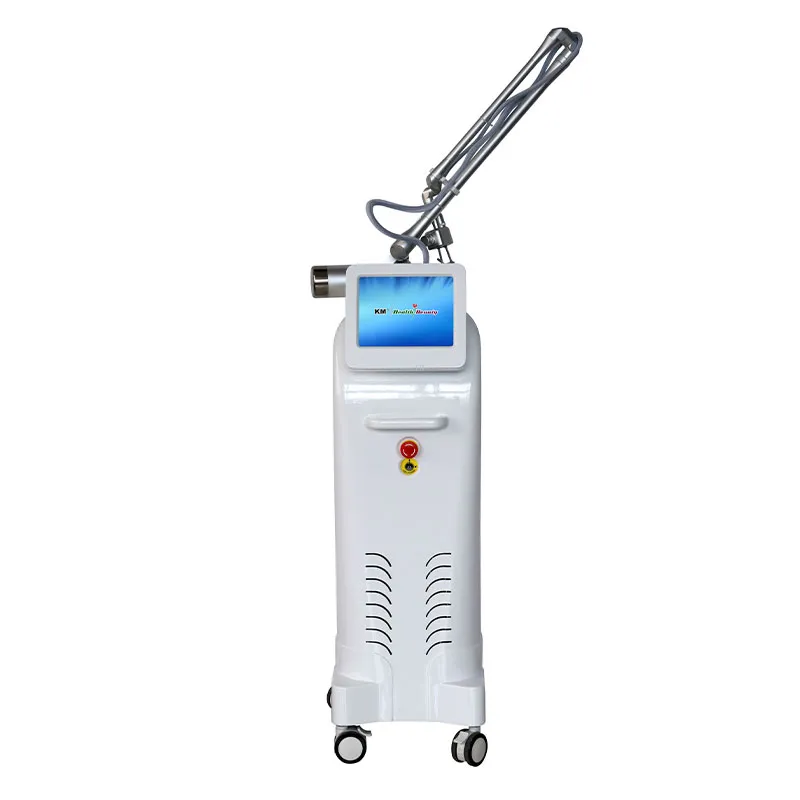

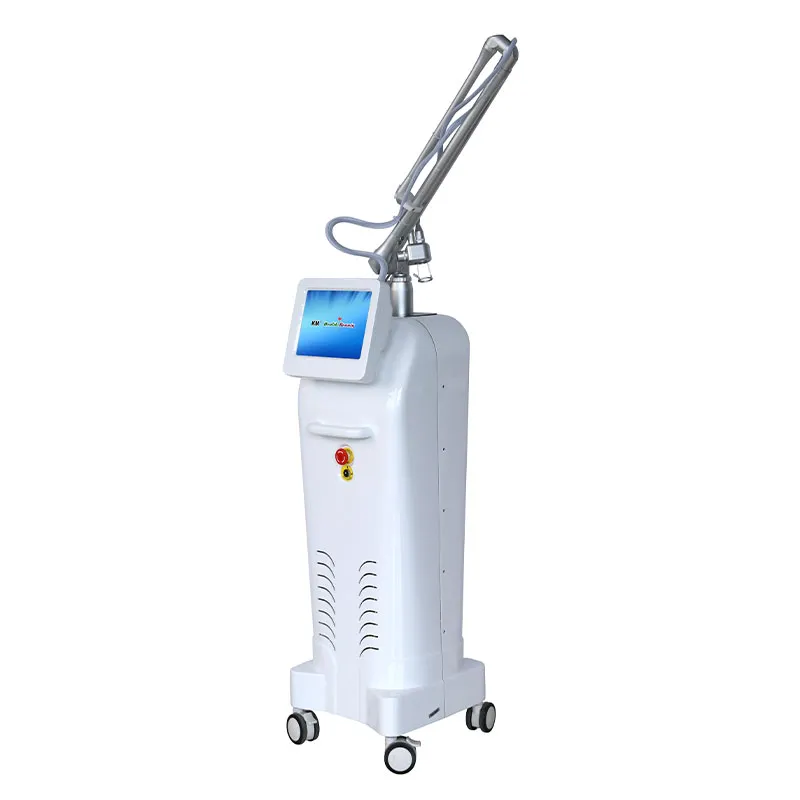

Weifang KM Fractional Co2 Medical Laser Equipment for Surgery Model KM600F

Theory of Fractional Laser Co2 Machine:



The carbon dioxide laser (CO2 laser) was one of the earliest gas lasers to be developed (invented by Kumar Patel of Bell Labs in 1964, and is still one of the most useful. Carbon dioxide lasers are the highest-power continuous wave lasers that are currently available. They are also quite efficient: the ratio of output power to pump power can be as large as 20%.


DESCRIPTION

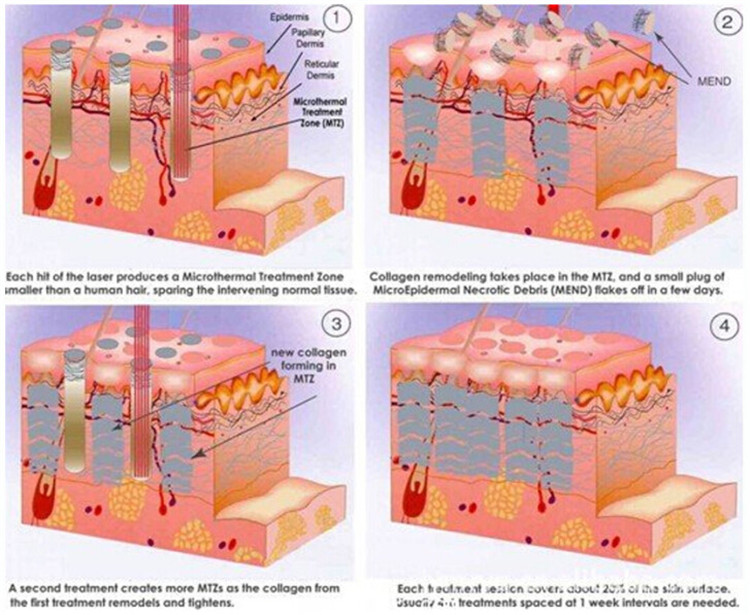

The CO2 laser produces a beam of infrared light with the principal wavelength bands centering around 9.4 and 10.6 micrometers. With fractional laser resurfacing the laser beam is broken up or fractionated into many small micro beams which are separated so that when they strike the skin surface small areas of the skin between the beams are not hit by the laser and left intact. These small areas of untreated skin promote a much more rapid recovery and healing with less risk of complications. The small areas treated by the fractional micro beams, called micro treatment zones, cause sufficient laser injury to promote new collagen production and resultant facial skin rejuvenation.


Fractional Co2 Medical Laser Equipment for Surgery Model KM600F

Fractional Co2 Medical Laser Equipment for Surgery Model KM600F


Applications of fractional laser co2 machine:

· Skin renewing and resurfacing;

· Skin tightening;

· Acne and acne scar removal;

· Smooth burnt scars and surgery scars, dermabrasion etc-;

· Remove intractable chloasmas and pigmentation;

· Sun damage recovery


Characters of fractional laser co2 machine:

1. USA radio frequency laser

2. individual design of laser structure, greatly facility laser replacement and easy daily maintenance;

3. Display: 10.4” color touch LCD screen

4. Humanized software control, stable laser output, more safe

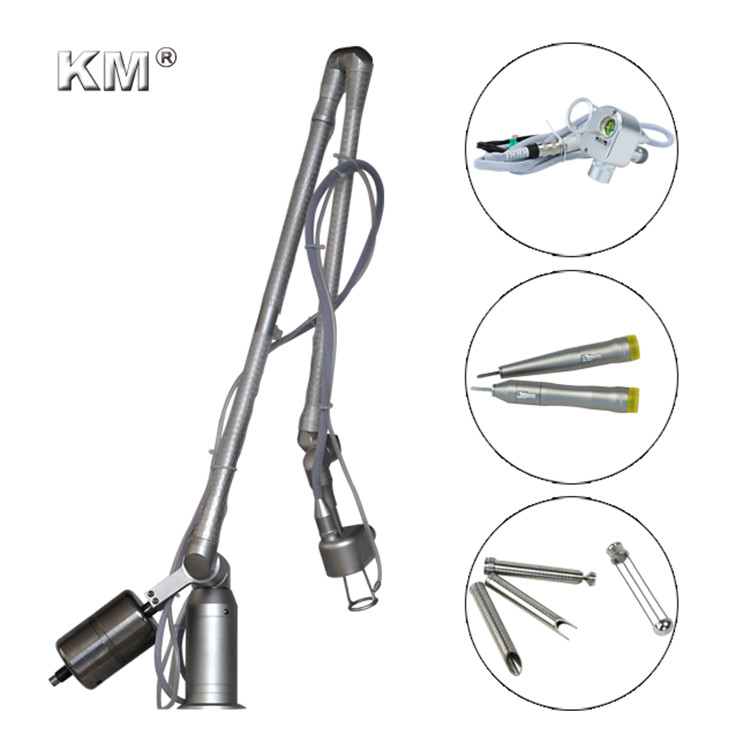

5. Smart articular arm, high accuracy

6. Excellent performance, not affect people’s normal life and study

7. Packing: aluminum alloy case

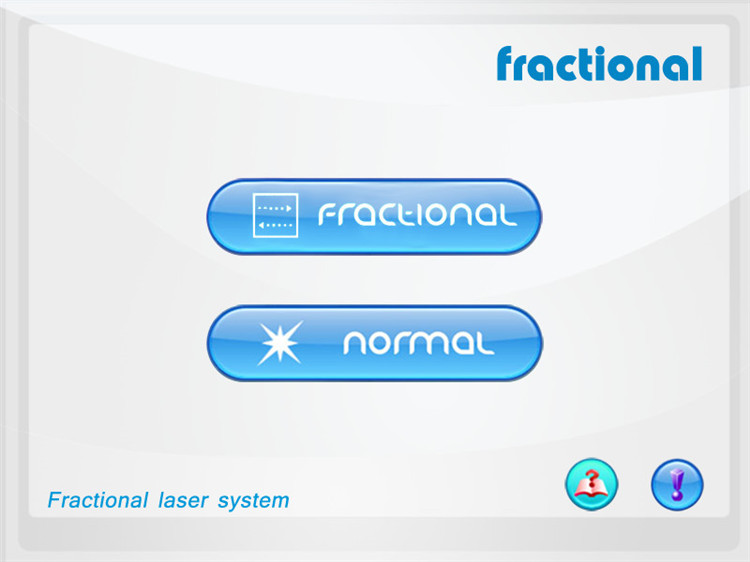

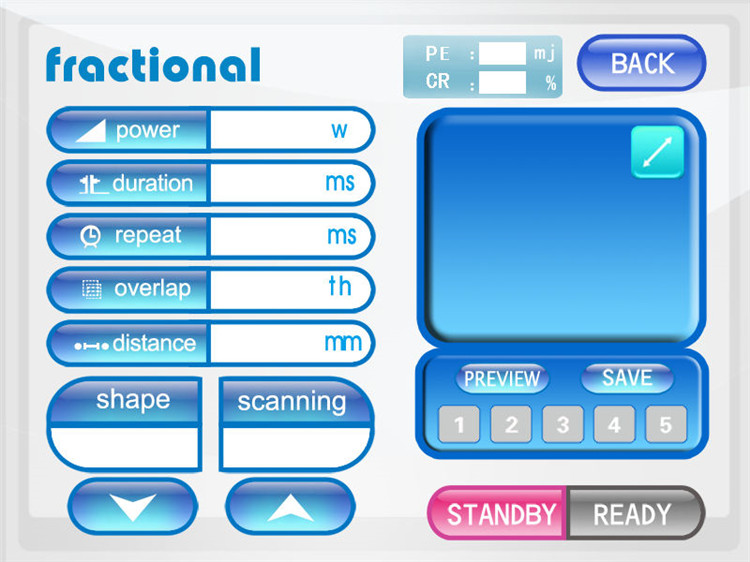

Treatment Interface:


Fractional Co2 Medical Laser Equipment for Surgery Model KM600F

Fractional Co2 Medical Laser Equipment for Surgery Model KM600F

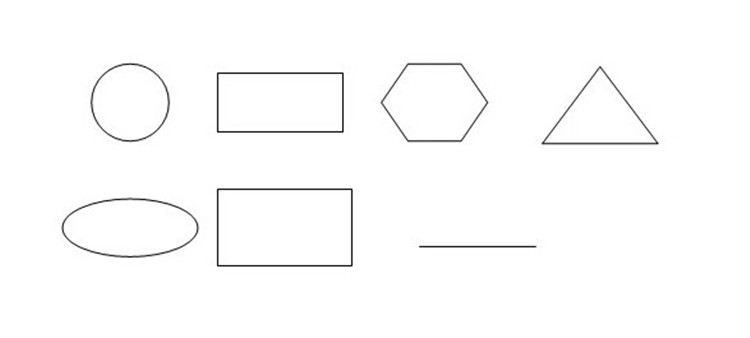

Scanning Shapes:

You choose 6 different canning shaps,also you can change the size of scanning shaps at will according to your own needs.So the beam of light can achieve the treatment area accurately

square, rectangle, round, triangle, oval, 6-diamond shape and line


Fractional Co2 Medical Laser Equipment for Surgery Model KM600F

Specification of Fractional Laser Co2 Machine:


Basic informationWavelength10.600 nm
Pulsed radiofrequency0.530 W
Ultrapulse1.Max power: 130W2.Pulse width:200 to 500μs. you can choose
PulseAverage power: 40W
Matrix modeScan patternSquare, rectangle, round, triangle, oval, 6-diamond shape, line or customized graphics
Scan pattern size0.1x0.1mm—20x20mm
Dot quantity400 dots at most
Working stateultrapulsed mode;
Scan modefree scan; Sequence scan; maximum distance scan
Pulse duration0.1-10ms
Spot distance0.1-2mm
Pulse energy1mj to 100mj is optional for each dot.
TechnicalspecificationLaser apparatusSealed off laser device stimulated by direct current
Condenser focusf=50mm
Beam divergence angle0.3 mrad
Spot size≥0.2mm at the focus
Radiation time / Interval time0.01 1 s
Aiming beam635nm infrared ray
Beam transport device7 articular arm
Net weight57 kg
Machine size46x61x120cm
Power supply220V/110V

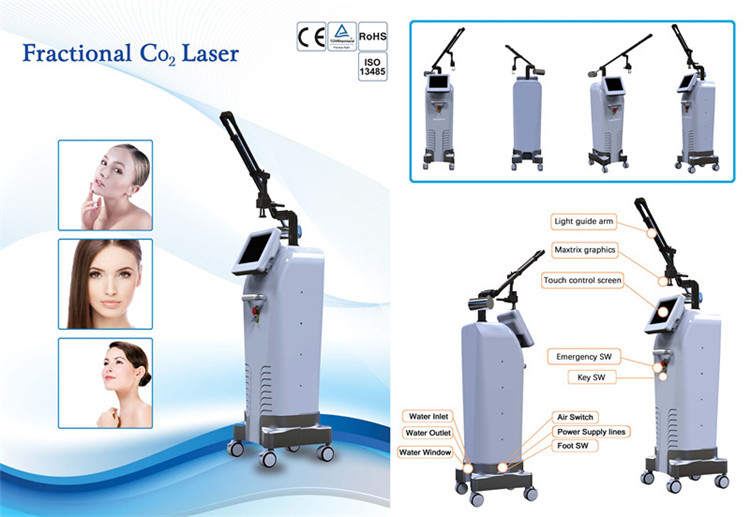

Picture Shows:


Fractional Co2 Medical Laser Equipment for Surgery Model KM600F

WHAT CAUSES STRETCH MARKS?


Stretch marks occur when the elastic middle layer of skin called the dermis is stretched. Stretching leads to a breakdown of connective tissue, inflammation, and then scar formation as the injury heals. It's the scarring that causes stretch marks to appear.

Stretch marks are common during puberty and rapid growth spurts in adolescence, pregnancy, excessive weight gain and obesity, pregnancy, when muscle mass increases rapidly and stretches the skin (like during bodybuilding), and sometimes when individuals use steroids for many months. Stretch marks are not a health risk but can be cosmetically unappealing.

How do they look like?


Stretch marks often start off as reddish or purplish in color and then become glossy skin that appears streaked in silver or white.
Men and women can get stretch marks on several areas of their bodies, including the abdominal area, thighs, hips, breasts, upper arms or lower back.
