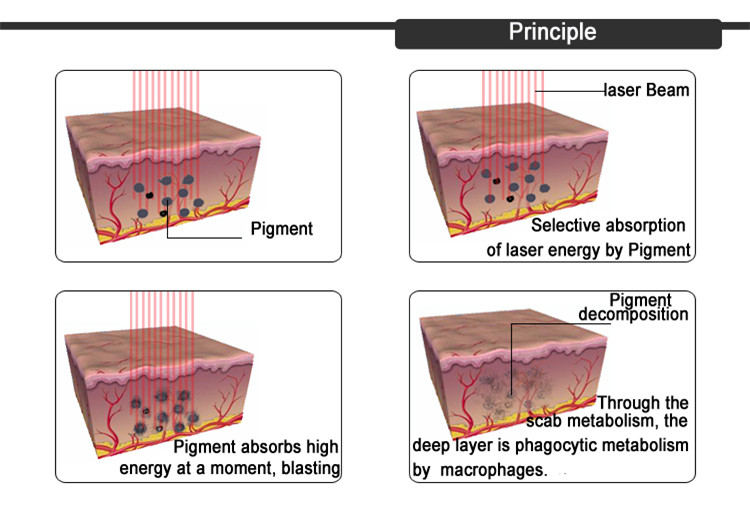

Working Principle of Q Switched ND YAG Laser
· The freckle removal machine operates by outputting a high energy Q-switched ND: Yag laser, which breaks pigment molecules into smaller and smaller particles. Some of the pigment particles will dissipate while others will be removed by the body's immune system or lymphatic system resulting on complete freckle removal.
DESCRIPTION
Advanced Unique Technology of Q Switched ND YAG Laser
1. The machine is equipped with a 7-articulated arm imported from Korea, which can ensure laser focusing and prevent polarization and astigmatism.
2.The Q-switched Nd Yag laser device emits single pulse laser energy, which will not harm the skin and realizes painless treatment.
3. The laser skin freckle removal machine supports long time continuous operation
4. We adopt an American imported laser device, which delivers a round light spot with a maximum energy of 2.6J.
5. The diameter of the spot ranges from 2mm to 10mm.
6. The pulse width is 6ns and will not cause damage to the skin.
7. The rear end of arm is equipped with 1200mj single pulse energy and 2000mj long pulse energy, which can effectively remove all kinds of skin pigmentosus diseases.
8. The Q-switched laser skin freckle removal machine is well designed with a compact structure and is very convenient for operation by doctors and other approved professionals.

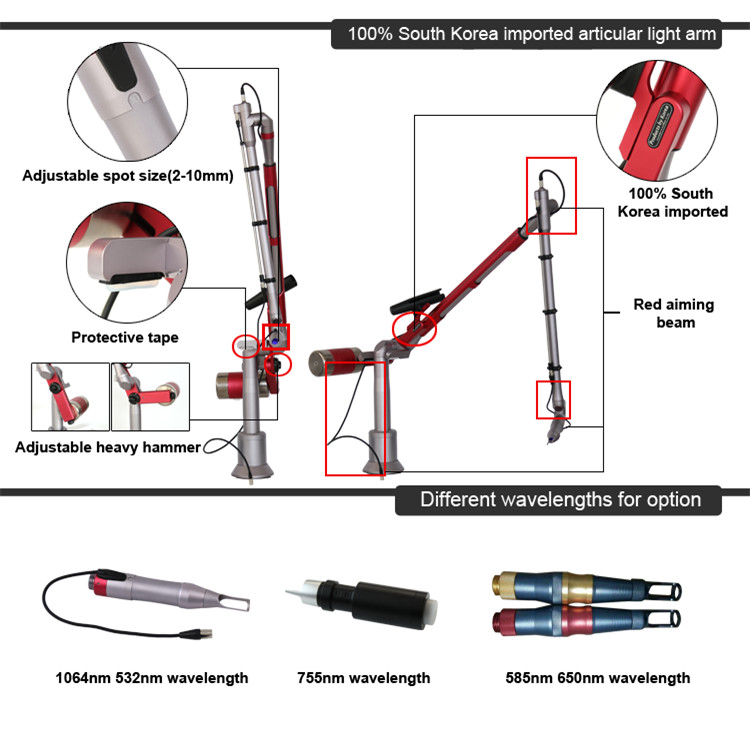

South Korea imported light arm of Q Switched ND YAG Laser

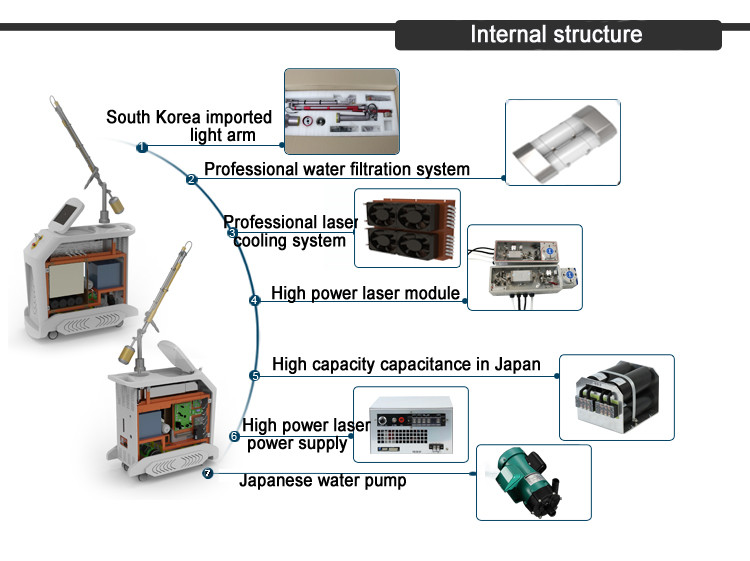

Inside important parts of Q Switched ND YAG Laser

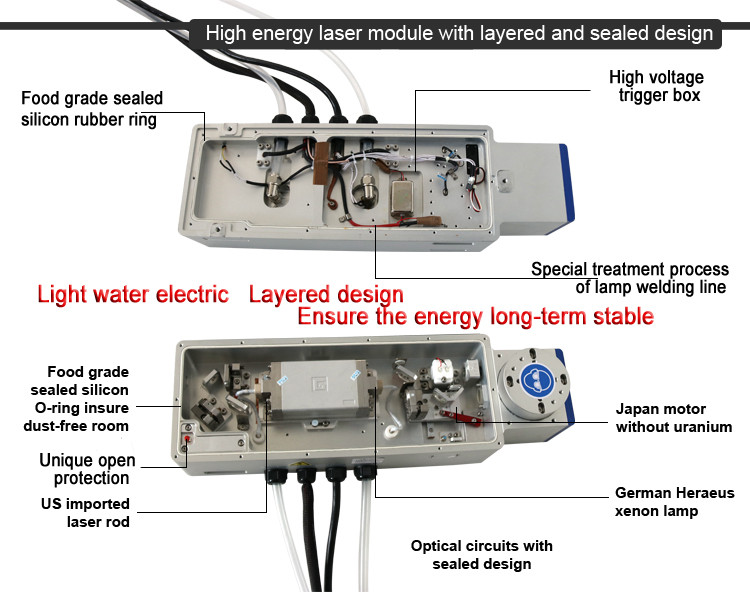

Unique designed laser module of Q Switched ND YAG Laser

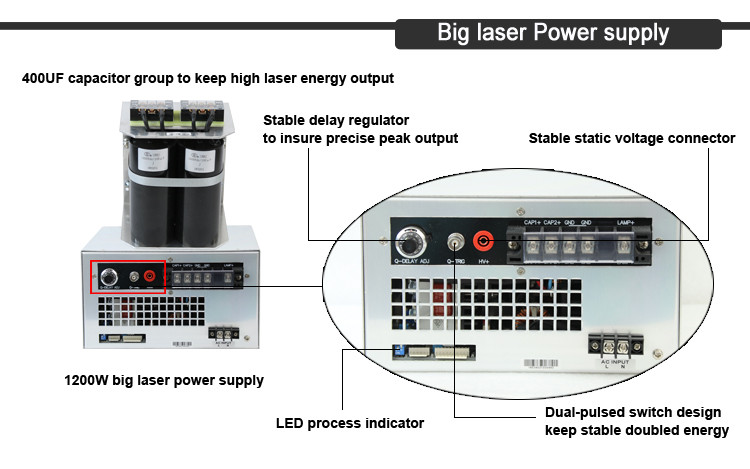

South Korea imported power supply of Q Switched ND YAG Laser
Widely Applications of Q Switched ND YAG Laser
· The Q-switched laser skin freckle removal machine is designed especially for the treatment of freckles, chloasma, sunburn and other nevus flecks caused by chromatosis
· The machine can also be used to remove tattoos even those on sensitive areas like eyebrow tattoos, eyeliner tattoos, and other skin lesions with pigment.
· The skin freckle removal equipment is equipped with a dedicated handpiece, which carries out the functions of skin rejuvenation, shrinking pores, skin mole and freckle removal, facial skin whitening, deep pore cleansing, and oil-control.
Specification of Q Switched ND YAG Laser
| Laser type | Electro-Optic Q-switched Nd:YAG Solid State Laser |
| Wavelength | 1064nm, 532nm,(755nm,585nm,650nm) |
| Controller | 10.4 inch Color Touch Display Screen |
| Single-Q EnergyDouble-Q Energy | MAX 600mJ (1064nm); MAX300mJ (532nm) |
| MAX 1200mJ (1064nm); MAX600mJ (532nm) | |
| Long pulse mode (1064nm): Max.3000mJ | |
| laser mode | Single-Q / double Q/ long pulse |
| Beam profile | Flat-top mode |
| Power | 2000W |
| Width of pulses | 500ps±10% (Q-Switched mode)300 us (Long pulse mode) |
| Frequency | 1-10(15HZ) |
| Diameter of spot | 2-10mm adjustable |
| Beam of light transmission | 7 articular-arm of light guide transmitting, transmission power is more than 90% |
| Indicator of aiming light | red semiconductor aiming light, wavelength 650nm(Red Diode Laser(On, Off, Blinking Available)) |
| Cooling manner | Closed-off water circulation + air |
| Program language | English,German,franch,,,,according your required |
| Dimension of machine | 88*32*83 cm |
| Dimension of package | 112*54*100 cm |
| N.W. | 70kg |
| G.W. | 120 kg |
| Packing | wooden case and Aluminum Box |
| Voltage | AC230V / 110V 50/60HZ |
Certificate of Q Switched ND YAG Laser
· CE approved
· TUV ISO 13485:2016 newest standard and more strict for production line inspection
· There is few supplier get Medical CE and ISO13485 from TUV in China market now
